China Hot Surface Wave Seismic Instrument DZQ6B Engineering Seismograph

Place of Origin : Chongqing

Certification : ISO9001-2008

Model Number : DZQ6B

Material : Carbon Steel

MOQ : 1 set

Price : 1-1000USD

Packaging Details : box

Delivery Time : stocked

Payment Terms : T/T or L/C

Supply Ability : 1000sets/year

Type : instrument

Machine Type : instrument

Processing Type : machining

Use : geophysical exploration

Contact Now

DZQ6B Engineering Seismograph (Surface Wave Instrument)

ADD: NO.1 Kuaileli, Xiaolongkan Street, Shapingba District, Chongqing China;

Skype: lucyfang9 ; Website: www.lucydrillingrig.com, email: lucyfang15@yahoo.com;

M: +86-13628481197 TEL.:+86-15923510719,15111813754

Main Applications and Features
Realization of Various Seismic Methods; Surface wave, high-density seismic imaging, pulse measurement, refraction,shear wave measurement, city blasting vibration safety evaluation, pile foundation testing, etc.
Working system based on Chinese Windows environment, powerful in functions, easy for operation.
High dynamic range, high technical index, fully meet the demands of city geophysical exploration; also provide an alternative selection for field exploration.
Humanized hand mouse, or touch panel directly manipulated. Realization of Various Seismic Methods; Surface wave, high-density seismic imaging, pulse measurement, refraction, shear wave measurement, city blasting vibration safety evaluation, pile foundation testing, etc.

Main Technical Specifications
Computer Configuration: Military Grade PC104 Control Computer P4 (933MHz); Memory: 128MB; Hard Disk: no smaller than 40GB; Operating System: win-XP
Display: 1024x768 dot matrix, high brightness TFT (true color) LED.
Input Device: Equipped with suitable field-use membrane keyboard and touch screen; can also be connected with PS / 2 computer keyboard and mouse; provided with handwriting tablet.
Interface: Dual USB interface, PS/2 keyboard, mouse interface, parallel port, Ethernet port, etc.
Removable Storage: USB disk, or adopting mobile hard disk drive, USB mobile drive, etc.
Frequency Response Range: 0.1Hz~4kHz
Noise: smaller than 1 μV at full-frequency state
Number of channels: 6 (optional 1,2,3 channels mode)
Time Delay: 0~9999ms
Amplitude conformity:less than 1%;
Phase conformity: better than ±0.5ms
Sampling Rate: 10μs/25μs/50μs/100μs/200μs/500μs/1 ms/2 ms/5 ms/10 ms/20ms, optionally
Number of Sampling Points: 512, 1024, 2048, 4096, 8192, 16384 , optionally
Preamplifier Gain: 100 times (40dB), 10 times (20dB), 1 times, optionally
A/D Converter: floating point 24 bit A/D converter
Supported Data Format: SEG-2
Power Supply: 12V DC
Service Environment: -10℃~ +55 ℃; Humidity 90%RH
Volume: 390×270×190mm
Weight: 9kg

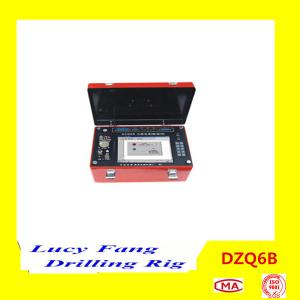

China Hot Surface Wave Seismic Instrument DZQ6B Engineering Seismograph Images
